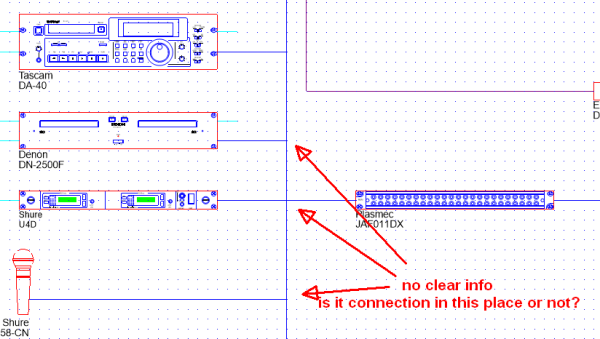

How is possible to add connection dots on the drawings?

Hi Włodek,

There is no functionality to apply 'connection dots' automatically, instead there is functionality to add Cable Bridges to show where cables cross but do not intersect.  See the Help topic Cable Bridging

If you want to add connection dots you would need to do this manually.

Kind regards,
Rob Robinson
Stardraw.com

+x



Rob Robinson - 12/21/2025 1:26:39 PM

Hi Włodek,

There is no functionality to apply 'connection dots' automatically, instead there is functionality to add Cable Bridges to show where cables cross but do not intersect.  See the Help topic Cable Bridging

If you want to add connection dots you would need to do this manually.

ok, thank you for your infio
